Automobile Industry

Case Introduction

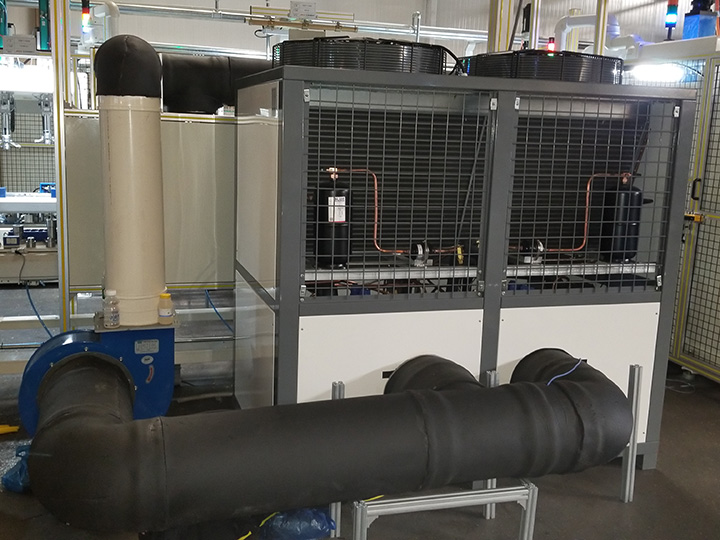

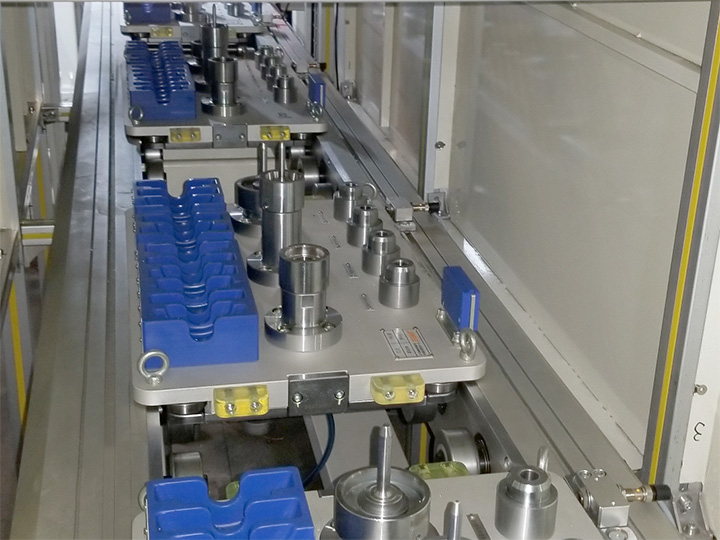

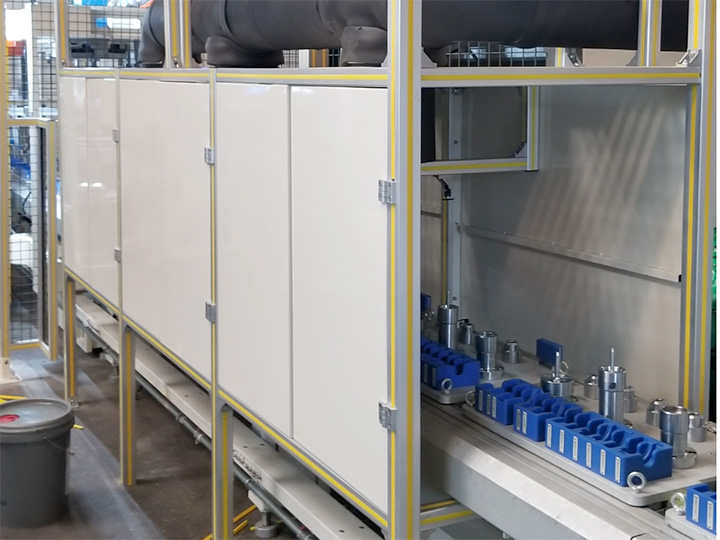

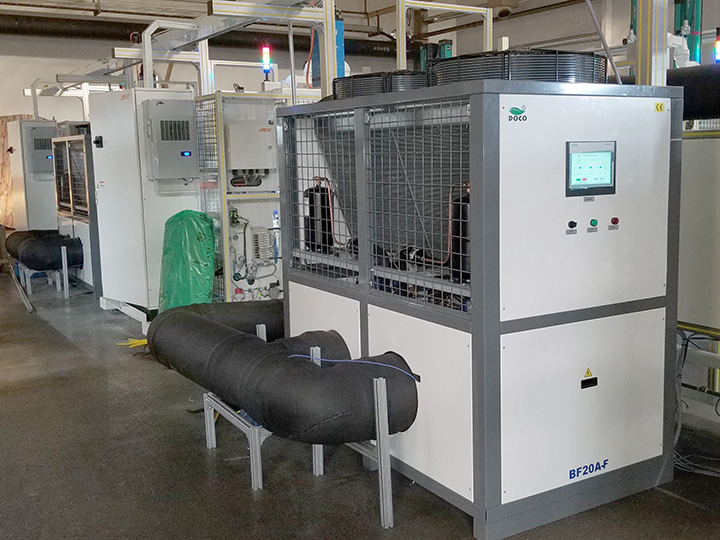

DOCO Industrial Air Cooler 20P applied to automobile electromotor manufacturing industry for customer JEE Automotive Manufacture

Product features:

* Unique heat disspation design without water recycle tower
* Accurate temperature control with precision +/- 1 ℃
* Stable operation and low noise
* Energy efficiency with saving 10 -15%

Technical Parameters

Model Item		DC-LF2A	DC-LF3A	DC-LF5W	DC-LF10W-D	DC-LF15W-T	DC-LF20W-F	DC-LF25W-D	DC-LF30W-T
Horsepower	HP	2	3	5	10	15	20	25	30
Refrigerating Capacity	kcal/h	4730	7086	12900	26660	38700	52460	58480	79120
Refrigerating Capacity	KW	5.5	8.24	15	31	45	61	68	92
Outlet Air Temperature		8-15℃
Power Supply		220V 50HZ	380V 50HZ 3PH
Compressor Power(kw)		1.7	2.5	4	4*2	4*3	4*4	10*2	8*3
Refrigerant		R22 (R407、R410 Environmental refrigerants are optional)
Condenser	Type	Air Cooled Type （thickened corrugated window-opening aluminum fin with copper tubing）		Water Cooled Type （ shell and tube type with the external threaded copper tubing）
Fan Power	KW	0.75	0.75	1.1	1.5	2.2	3.7	5.5	7.5
Air Volume	m³/h	1000	1500	3000	5000	7600	11000	13000	15000
Evaporator	Type	Corrugated open-window aluminum foil radiating fin with copper tube inside Lower outlet temperature
Dimensions	Length mm	700	955	1105	1600	1710	1300	1850	1980
	Width mm	550	655	655	805	850	800	1100	1250
	Height mm	1177	1230	1400	1355	2100	1660	2200	2350
Safety Protections		Delay protection, anti-freezing protection, compressor overheating protection, refrigerant high and low pressure protection, overcurrent protection, phase sequence / phase deficiency protection, overload protection, etc.

Technical Specifications:

1. Model number specification: e.g. DC-LF10W-D, “DC” indicates Doco company code, “LF” indicates air chiller, “10” indicates 10 horsepower, “A” indicates air cooled chiller, “W” indicates water cooled chiller, “D” indicates dual system with two compressors, “T” indicates three compressors.
3. Refrigerating capacity parameter basis: the temperature of inlet and outlet chilled air is 25 ℃ / 10℃，condensing temperature is 35℃.
2. *Compressor power: *2indicates two compressors working and two independent refrigerating systems.
4. Working ranges: the chilled air outlet temperature is 5℃ to 20℃ with the ambient temperature below 40℃.
5. We reserve the right to revise the above information without prior notice.
